JFC1206-1800TS
集電通JFC1206-1800TS 慢斷保險絲的單片多層設計可以在最小的電路板面積上提供最大的承載能力，改善產品的可靠性和反應能力，同時提高各種電路保護設計中的高溫性能。這些符合RoHS規范的表面貼裝式器件具有較強電弧抑制特性，可為筆記本電腦、多媒體設備、移動電話等高可靠和高性能的消費電子產品，以及其他便攜式電子產品提供有效電流保護。實用范圍：手機，數碼相機，DVD播放器，硬盤驅動器等

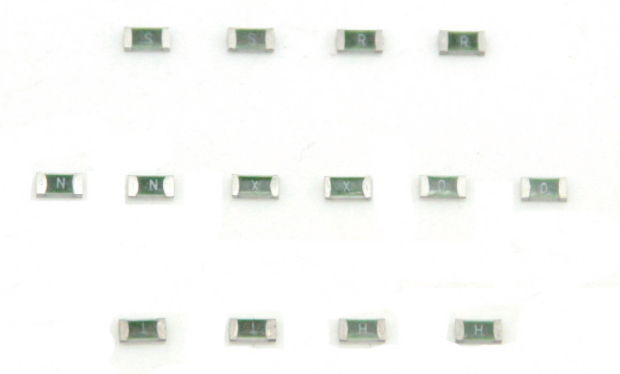

| Part NO. | Rated VoltageDC | Rated Current(A) | Breaking Capacity1 | Typical Cold. Resistance(mOhms)2 | Typical Voltage Drop(mV) | Typical Pre-Arcing I2t (A2Sec)3DC | Aplha Marking | Data Sheet |
|---|---|---|---|---|---|---|---|---|
| JFC1206-2300TS | 24V/32V | 30 | 300A | 1.3 | 90 | 100 | Z |
 |
| JFC1206-2250TS | 24V/32V | 25 | 300A | 1.6 | 90 | 60 | L |
|
| JFC1206-2200TS | 24V/32V | 20 | 300A | 3.4 | 80 | 50 | Q |
|
| JFC1206-2150TS | 24V/32V | 15 | 300A | 3.5 | 78 | 16.5 | 15 |
|
| JFC1206-2120TS | 24V/32V | 12 | 300A | 5 | 85 | 11.5 | 12 |
|
| JFC1206-2100TS | 32V/45V | 10 | 300A | 7 | 110 | 22 | U |
|
| JFC1206-1800TS | 32V/45V | 8 | 300A | 10 | 123 | 16 | M |
|
| JFC1206-1700TS | 32V/45V | 7 | 50A | 12.3 | 130 | 14 | 7 |
|
| JFC1206-1600TS | 32V/45V | 6 | 50A | 16 | 140 | 12 | F |
|
| JFC1206-1500TS | 32V/45V | 5 | 50A | 21.5 | 145 | 4 | T |
|
| JFC1206-1450TS | 32V/45V | 4.5 | 50A | 25 | 164 | 2.65 | X |
|
| JFC1206-1400TS | 72V/63V | 4 | 50A | 34 | 173 | 2.5 | S |
|
| JFC1206-1350TS | 72V/63V | 3.5 | 50A | 38 | 180 | 2 | R |
|
| JFC1206-1300TS | 72V/63V | 3 | 50A | 50 | 187 | 1.5 | P |
|
| JFC1206-1250TS | 72V/63V | 2.5 | 50A | 80 | 240 | 0.68 | O |
|
| JFC1206-1200TS | 72V/63V | 2 | 50A | 140 | 316 | 0.41 | N |
|
| JFC1206-1150TS | 72V/63V | 1.5 | 50A | 230 | 367 | 0.17 | K |
|
| JFC1206-1100TS | 72V/63V | 1 | 50A | 480 | 510 | 0.11 | H |
|
| JFC1206-0750TS | 72V/63V | 0.75 | 50A | 850 | 1150 | 0.019 | 0.75 |
|
